Industrial Valves - AIMS ENGINEERING - Chemicals Ball Valve, Petrochemicals Ball Valve, Fertilisers Ball Valve, and Pharmaceuticals Ball Valve Mumbai Jogeshwari

Our Products | Industrial Valves

Industrial Valves

AIMS ENGINEERING company, very well known for supplying/exporting a wide range of MANUAL and ACTUATOR OPERATED INDUSTRIAL VALVES such as FLOATING BALL VALVES, BUTTERFLY VALVES, GATE VALVES, KNIFE EDGE GATE VALVES, GLOBE VALVES, CHECK VALVES, STRAINERS etc. to cater the growing demands of our customers by providing them an excellent product at the most economical and competitive cost with no compromise in quality. These valves are frequently used for Oil and Gas, Refineries, Chemicals, Petrochemicals, Fertilizers, Pharmaceuticals, Marine, Power and other major industries as well.

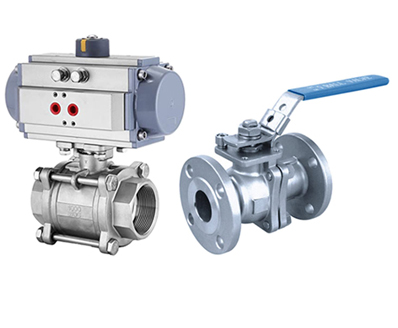

Floating Ball Valve
  • Product Type:- 2 way / 3 way Manual & Actuator operated Floating Ball Valve
  • Design:- 1piece / 2 piece / 3 piece design
  • Bore:- Full Bore / Reduced Bore
  • Ends:- Flanged / Screwed / Socket Weld / Butt Weld
  • Size:- 1/2" to 8"
  • Pressure Ratings:- ASME 150# / 300#
  • Body Material:- Stainless Steel / Alloy Steel / Carbon Steel / Cast Iron (CAST / FORGED)
  • Seat:- PTFE / CFT / GFT (special on request)
  • Operator:- Lever / Gear / Actuator (Pneumatic, Hydraulic, Electric Motorised)


Floating Ball Valve

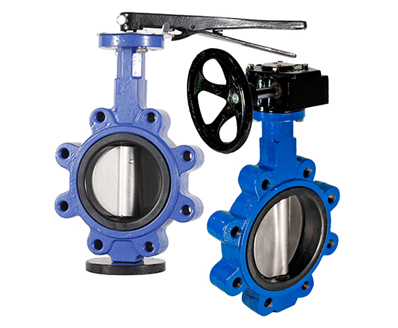

Butterfly Valve

  • Product Type:- Manual & Actuator operated Butterfly Valve
  • Design:- Double Offset / Triple offset / Centre Disc / Extended Stem
  • Ends:- Double Flanged / Wafer Type / Full Lug
  • Size:- 2" to 24"
  • Pressure Ratings:- PN10 / PN16
  • Body Material:- Stainless Steel / Alloy Steel / Carbon Steel / Cast Iron
  • Seat:- Nitrile / EPDM / VITON / SILICON
  • Operator:- Lever / Gear / Actuator (Pneumatic, Hydraulic, Electric Motorised)
Butterfly Valve
Gate Valve

  • Product Type:- Manual & Actuator operated Gate Valve
  • Design:- Bolted Bonnet OS & Y Type Rising Stem
  • Ends:- Flanged / Screwed / Socket Weld / Butt Weld
  • Size:- 25mm to 300mm
  • Body Material:- Stainless Steel / Alloy Steel / Carbon Steel / Cast Iron
  • Operator:- Lever / Gear / Actuator (Pneumatic, Hydraulic, Electric Motorised)
  • Pressure Class:- 125# / 300#
Gate Valve

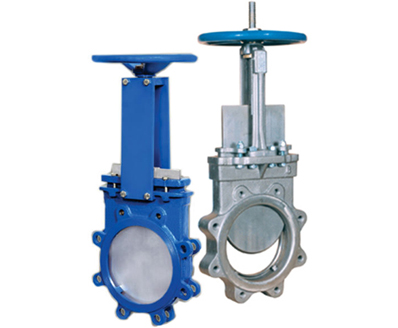

Knife Edge Gate Valve

  • Product Type:- Wheel operated Knife Edge Gate Valve
  • Design:- Bonnet-less / Unidirectional / Bidirectional design
  • Ends:- Flanged / Wafer / Lug
  • Size:- 2" to 24"
  • Body Material:- Stainless Steel / Carbon Steel / Cast Iron
  • Seat:- Nitrile / EPDM / VITON / SILICON
  • Pressure Class:- 150#
Knife Edge Gate Valve

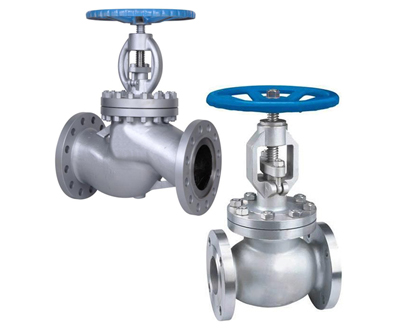

Globe Valve

  • Product Type:- Manual & Actuator operated Globe Valve
  • Design:- Bolted Bonnet OS & Y Type Rising Stem
  • Ends:- Flanged / Screwed / Socket Weld / Butt Weld
  • Size:- 25mm to 300mm
  • Body Material:- Stainless Steel / Alloy Steel / Carbon Steel / Cast Iron
  • Operator:- Lever / Gear / Actuator (Pneumatic, Hydraulic, Electric Motorised)
  • Pressure Class:- 125# / 300#
Globe Valve
Check Valve

  • Product Type:- Swing / Lift / Wafer Check Valve
  • Design:- Bolted Cover / Pressure Seal Bonnet / Dual Plate / Non Slam Disc
  • Ends:- Flanged / Screwed / Socket Weld / Butt Weld
  • Size:- 1" to 24"
  • Body Material:- Stainless Steel / Alloy Steel / Carbon Steel / Cast Iron
  • Pressure Class:- 150# / 300# / 600#
Check Valve
Strainer

  • Product Type:- Y Type / T Type / Basket Type Stainer
  • Design:- Bolted Cover / Fabricated
  • End:- Flanged / Screwed
  • Size:- 1" to 12"
  • Body Material:- Stainless Steel / Alloy Steel / Carbon Steel / Cast Iron
  • Pressure Class:- 150# / 300#
Strainer
